V1613HS

Cost-effective entry into the high speed cutting for XL parts

Features
  • - Cast iron is tempered for stress relief to ensure structural stability without deformation
  • - C3 class ballscrews ensures the highest accuracy and durability
  • - Pre-tension on all axes minimizes thermal distortion
  • - Roller type linear guideway, which offers supper high rigidity and loading capacity

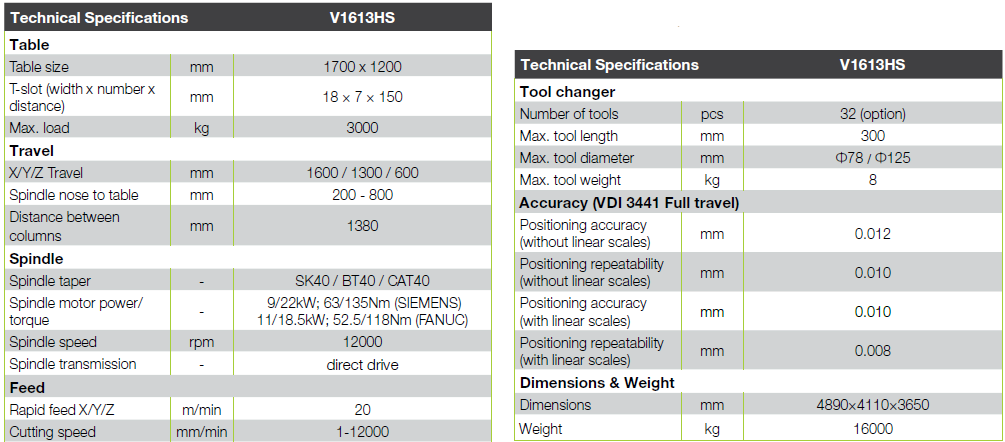

Specifications
  • Table Size: 1600x1300mm
Request Information
Category: High-Speed Double Column

High-speed machining center with cast iron construction tempered for stress relief. Features C3 class ballscrews and roller type linear guideway for superior rigidity.

  • Fully enclosed splash guard
  • Air-conditioned electrical cabinet
  • Rigid tapping
  • Chip conveyor (two screw type and one chain type)
  • Ethernet, CF card and USB interface
  • Automatic lubrication system
  • Coolant system
  • Spindle oil cooler
  • LED working lamp
  • End of program light
  • Electronic handwheel (MPG)
  • Tool box
  • Leveling bolts and blots
  • Coolant gun
  • Air gun
  • Direct drive spindle 15000 rpm
  • Built-in spindle 20000 rpm, HSK A63
  • 32 pockets arm tool changer
  • CTS coolant through spindle +ATS
  • Linear scales
  • Oil skimmer
  • Extra 200GB SSD program memory
